| Specifications | |
|---|---|

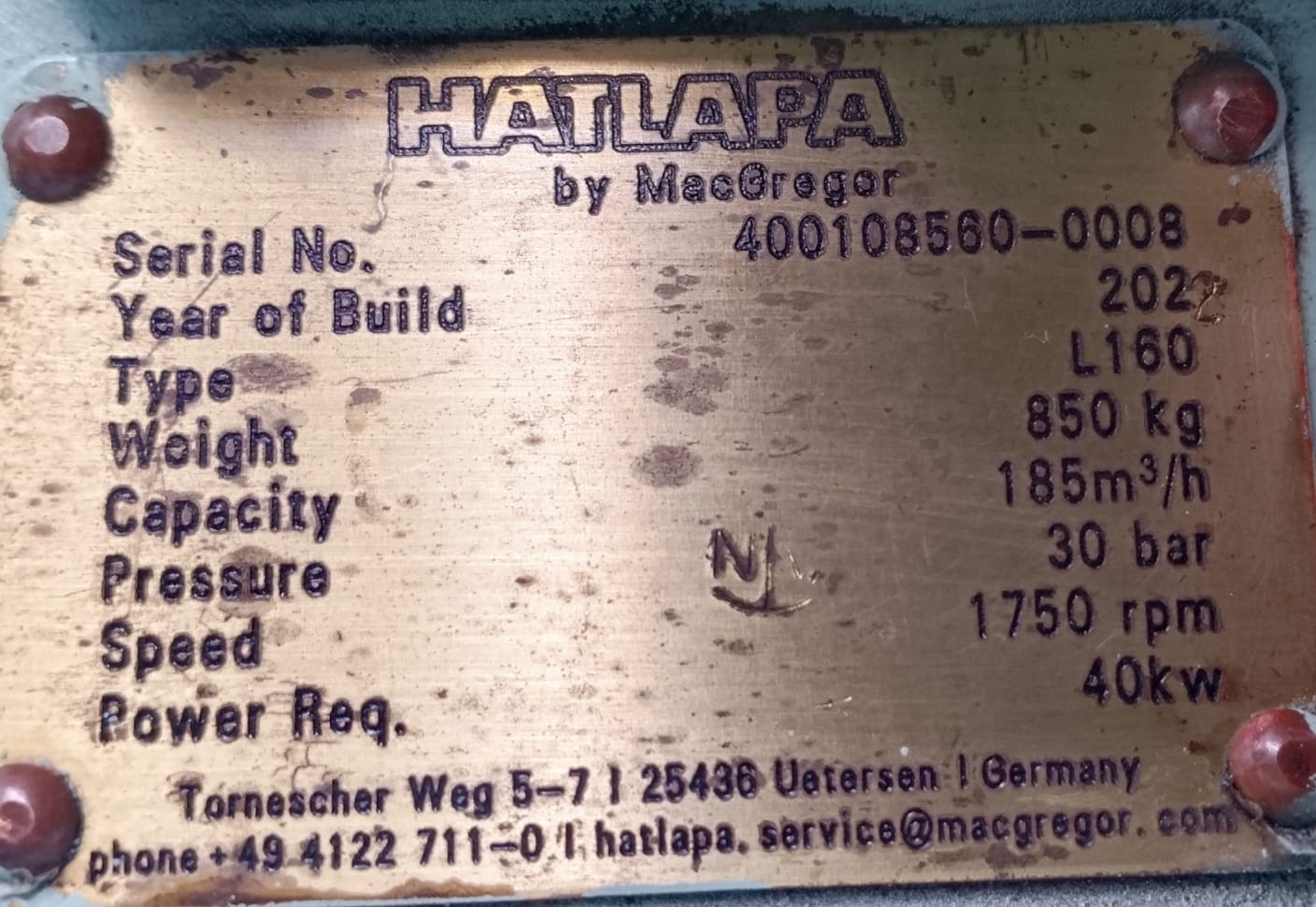

| MAKE | HATLAPA |
| TYPE | L 160 |
| SRL. NO. | 400108560 – 0003 , 400108560 – 0008 |
| CAPACITY | 185 M3/h |
| PRESSURE | 30 BAR |
| SPEED | 1750 RPM |
| POWER SOURCE | 40 KW |
| MFG DT/YEAR | 2022 |
| MOTOR PLATE | DEMOS MOTORS |
| MOTOR DETAILS | 3~MOTOR , TYPE : 1YPL YD – 225M – 4/2 , NO: 05151001 , IP: 55 , CONN: D , YY , BEARING NO: 6313C3/X2 |
| MOTOR POWER | VOLTS :440 , HZ : 60 , KW : 40/48 , AMPERE : 66.5 / 80 , RPM : 1775 R/MIN / 3545 , COSQ: 0.86/0.90 |
| MOTOR PLATE | MACGREGOR |
| MOTOR DETAILS | 3~MOTOR , TYPE : HMC2 225S – 4 , SERIAL NO: SH868548 , IE2 @ 400/690V 50HZ , 1/1: 92.7% , ¾: 93.2% , ½: 92.7 % , IM: B35 , YY/WW: 22/07 , IEC 60034-1 , BEARING : N.D.E: 6312-ZZ/C3 , D.E: 6313-ZZ/C3 , TROPICAL WINDING , WEIGHT : 300 KG |
| MOTOR POWER | VOLTS Δ/Y : Δ 380 – 415 , HZ : 50 , KW : 36.0 , AMPERE Δ/Y : D68.5 , RPM : 1480 , COSQ : 0.90 , DUTY : S1 – 45C |
| MOTOR POWER | VOLTS Δ/Y : Δ 440 – 480 , HZ : 60 , KW : 43 , AMPERE Δ/Y : D68.0 , RPM : 1770 , COSQ : 0.90 , DUTY : S1 – 45C |
| QTY | 2 PCS NEW |
