| Specifications | |
|---|---|

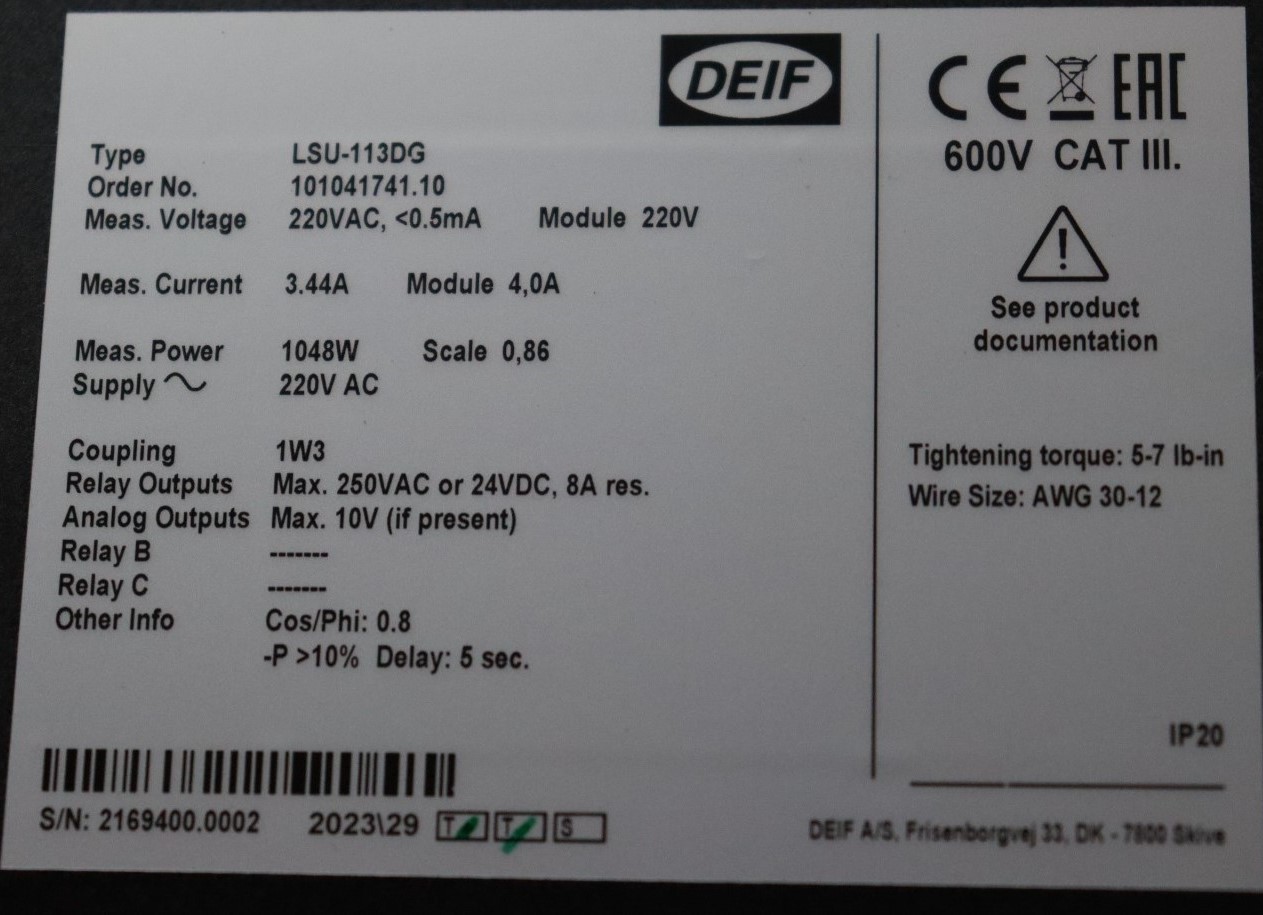

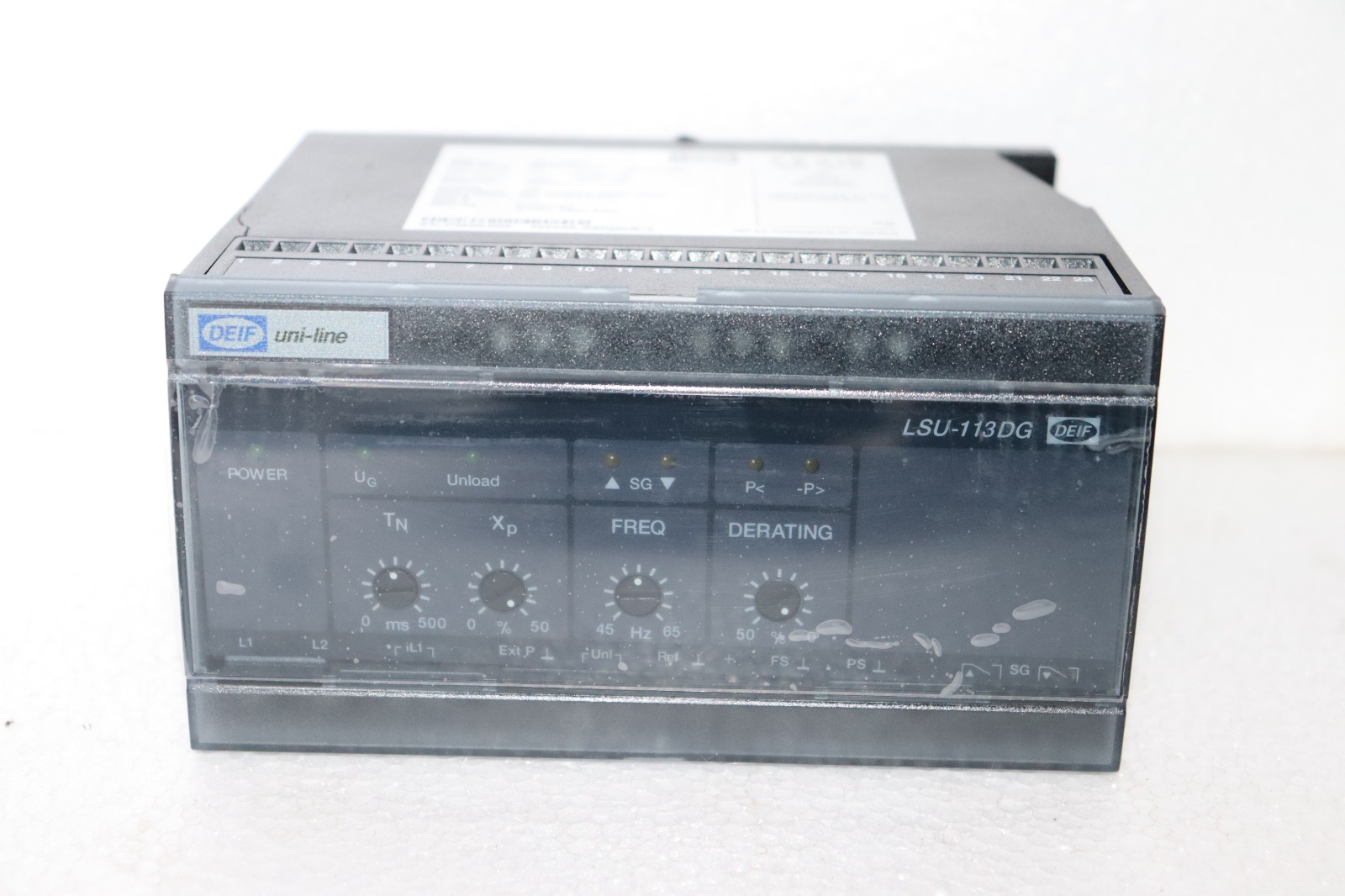

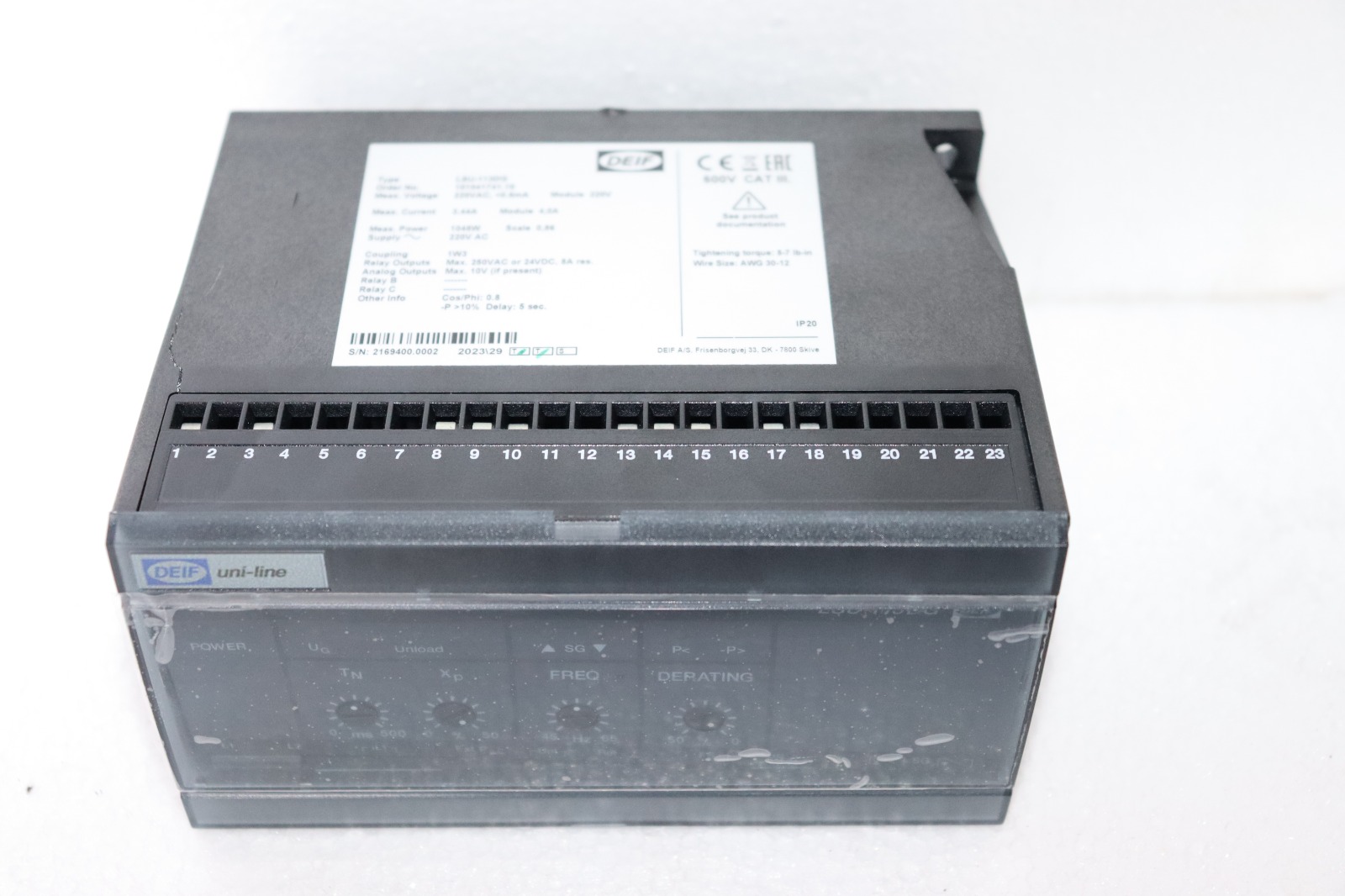

| MAKE | DEIF (LOAD SHARING UNIT) |
| TYPE | LSU-113DG |
| SRL. NO. | 2169400.0002 |
| ORDER NO | 101041741.10 |
| VOLTAGE | 220VAC, <0.5MA MODULE 220V |
| CURRENT | 3.44A MODULE 4,0A |
| DESCRIPTION | POWER SUPPLY : 1048W 220C AC SCALE 0,86, RELAY OUTPUTS : MAX. 250V AC OR 24VDC, 8A RES. ANALOG OUTPUTS : MAX. 10V (IF PRESENT), OTHER INFO : COS/PHI: 0.8-P >10% DELAY: 5 SEC. IP : 20 |
| COUPLING | 1W3 |
| DATE | 2023/29 |
| QTY | 2 PC NEW |
