| Specifications | |
|---|---|
| MODEL | A96857436P10836 811151 |

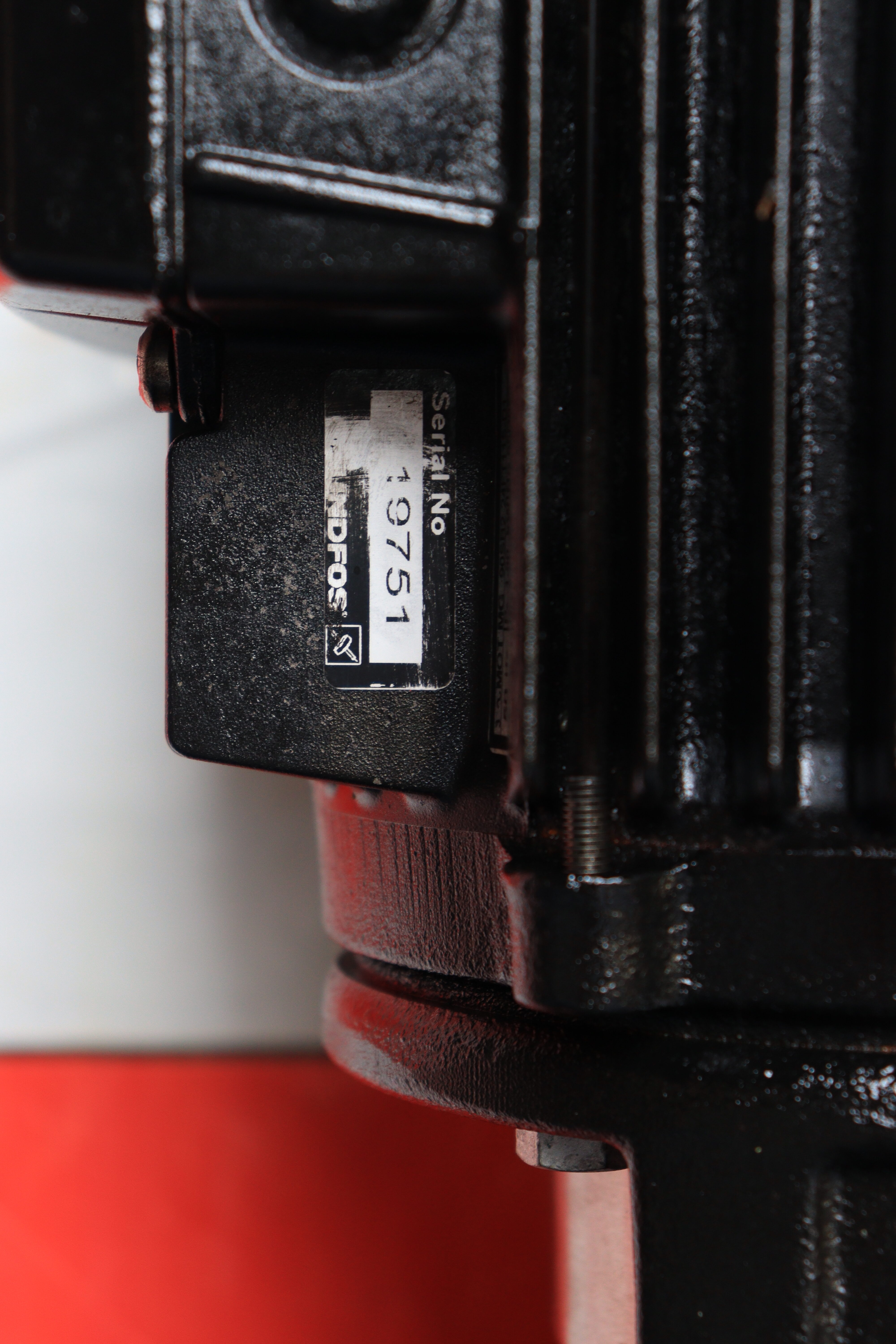

| SRL. NO. | 0001 |
| Hz | 60 |
| KW | 1.50 |
| CAPACITY | 2.2 M3/h |
| RPM | 3501 MIN-1 |
| DESCRIPTION | HMAX : 153 M, H : 116 M, PMAX/TMAX: 25/120 BAR/C |

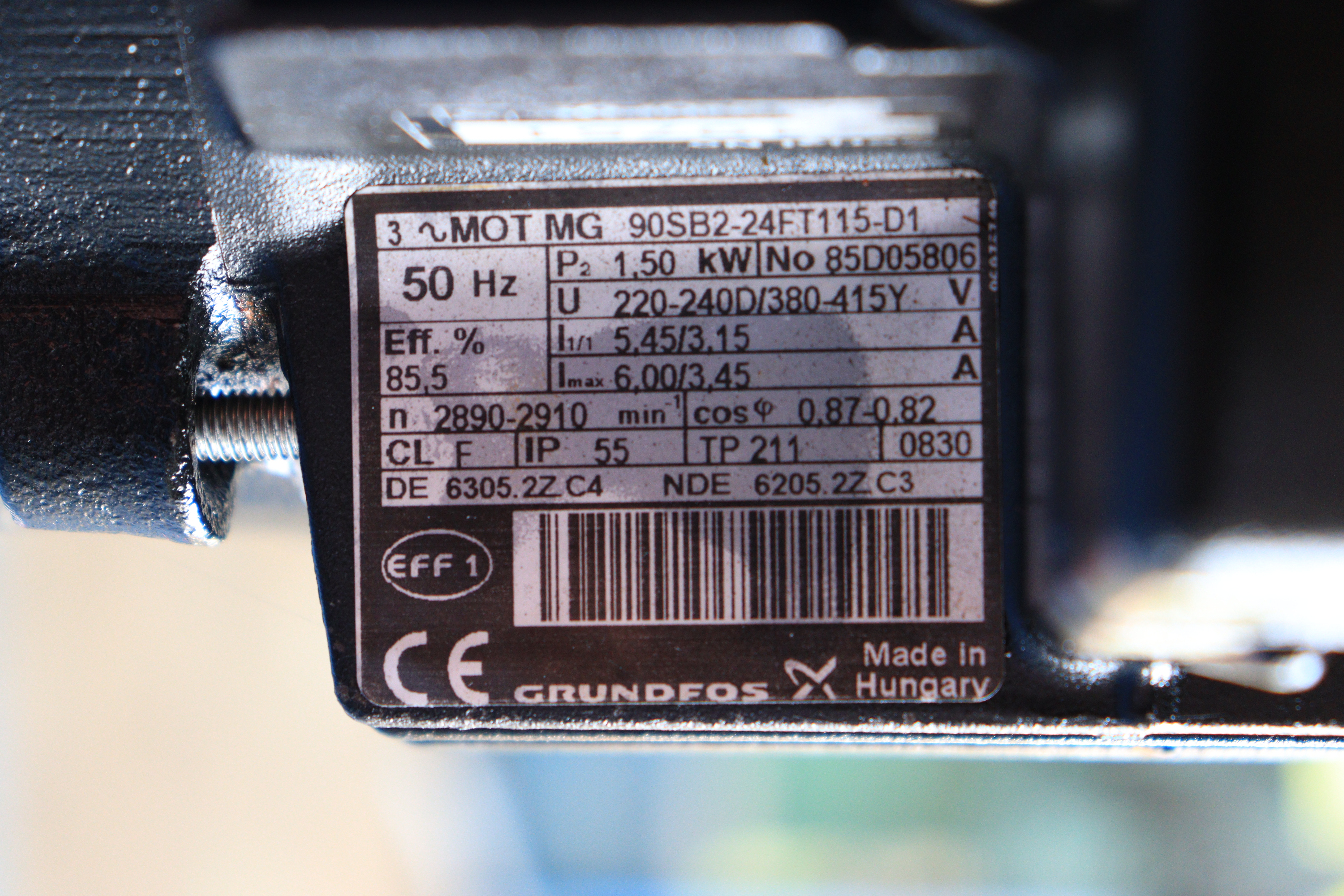

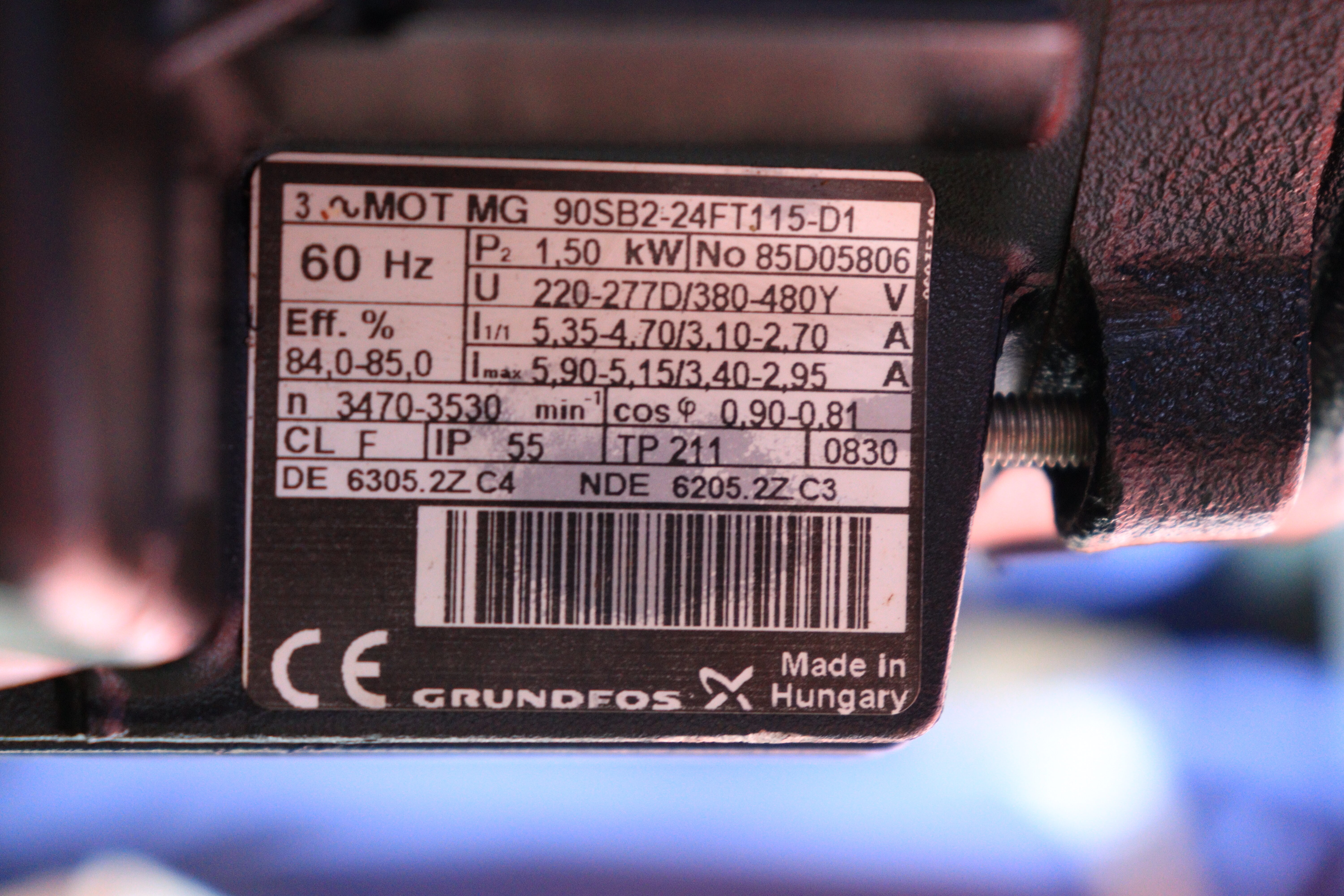

| MOTOR DETAILS | TYPE: MG 90SB2 – 24FT115 – D1, HZ: 50/60, P2- 1.50KW, EFF: 85.5/84.0-85, U 220 – 240D/380 – 415Y/277D/380-480Y V, NO: 85D05806/85D05806, 5.45/3.15 A, 6.00/3.45 A, 6.00/3.45 A, 5.35-4.70/3.10-2.70A, 5.90-5.15/3.40-2.95, IP: 55/55, 2890-2910, 0.87-0.82, 3470-3530, 0.90-0.81, TP: 211/211, DE: 63052ZC4/ 63052ZC4, NDE:62052Z C3/62052Z C3 |
| WEIGHT | 40 KG |
| QTY | 1 PC NEW |
