| Specifications | |
|---|---|

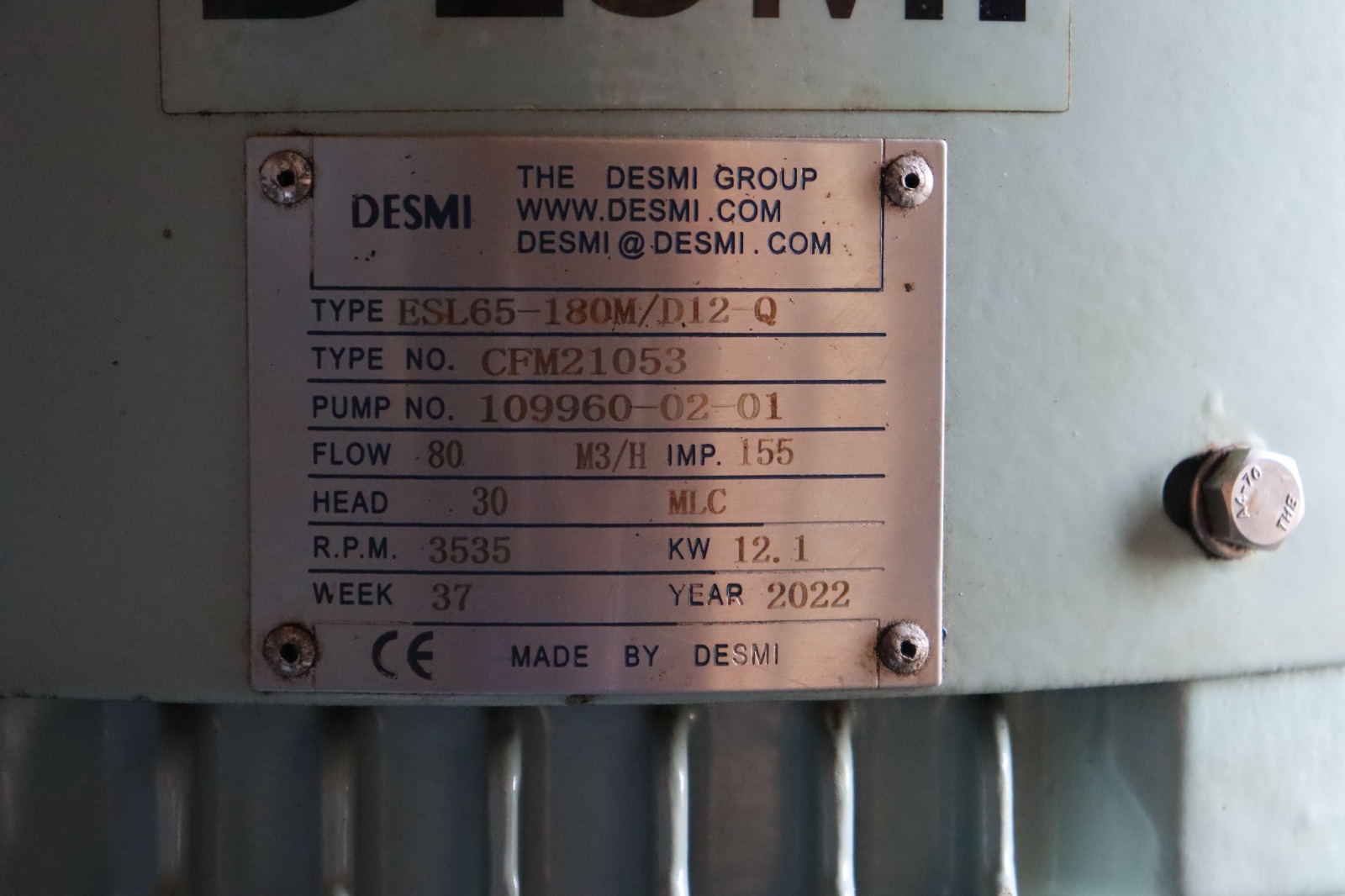

| MAKE | DESMI |
| TYPE | ESL65-180M/D12-Q |
| TYPE NO | CMF21053 |
| PUMP NO | 109960-02-01 |
| FLOW RATE | 80 M3/H |
| TH | 30 |
| RPM | 3535 |
| KW | 12.1 |

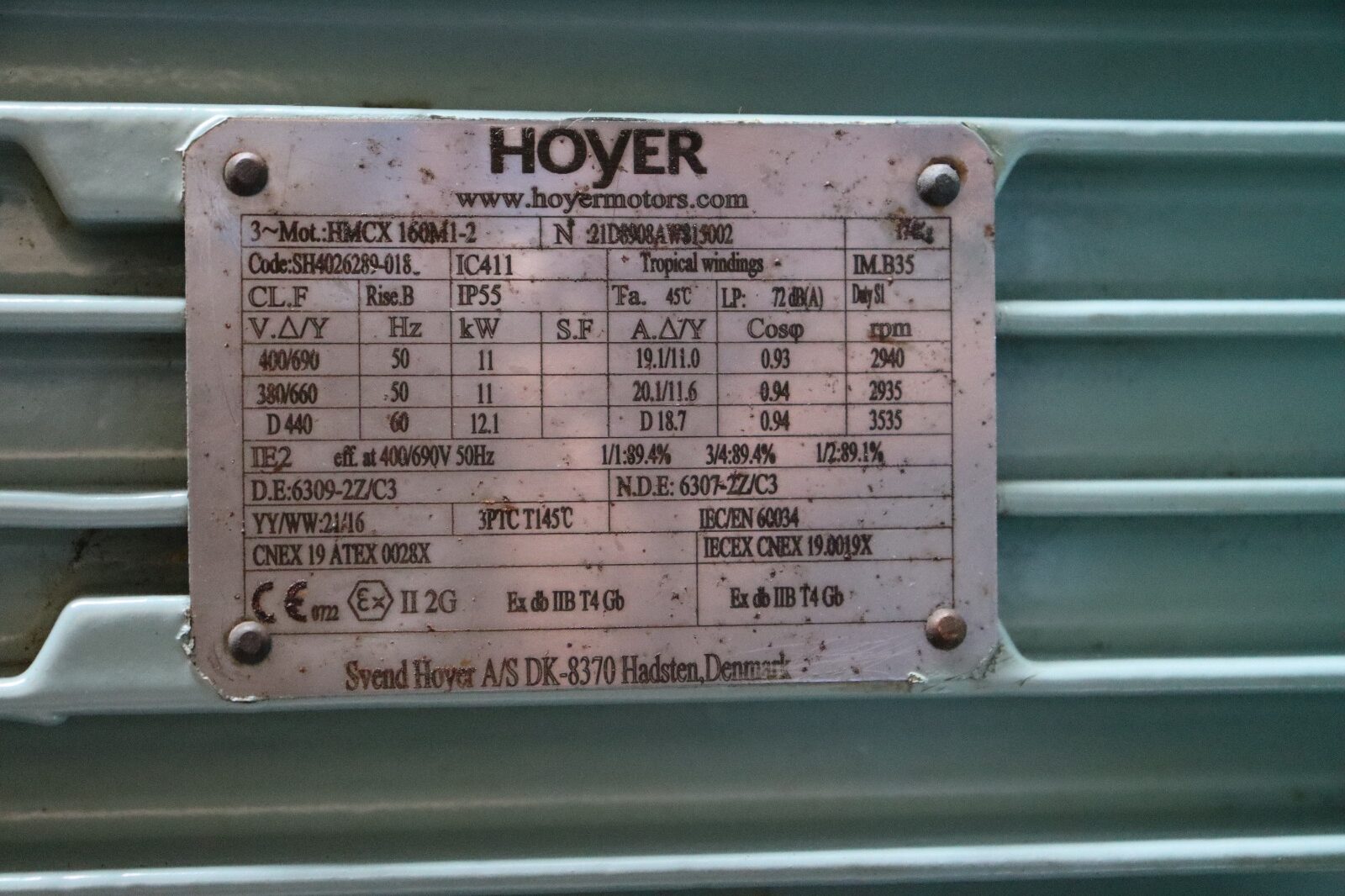

| MOTOR DETAILS | 3~MOT.: HMCX 160M1-2, N: 21D89085W815002, CODE: SH4026289-018, IC: 411, TROPICAL WINDINGS, IMB 35, CL: F, RISE: B, IP: 55, FA: 45C, LP: 72, DUTY: S1, V/Y: 400/690, 3800/660, D440, HZ: 50, 50, 60, KW: 11, 11, 12.1, A/Y: 19.1/11.1, 20.1/11.6, COS: 0.93, 0.94, 0.94, RPM: 2940, 2935, 3535, IE2 EFF. AT 400/690V 50HZ 1/1: 89.4% ¾: 89.4% ½: 89.1%, D.E: 6309-2Z/C3, N.D.E: 6307ZZ/C3 YY/WW: 21/16, 3PTC T145C, IEC/EN: 60034, CNEX 19 ATEX 0028X IECEX CNEX 190019X |
| DESCRIPTION | IMP : 155, WEEK : 37 |
| DATE | 2022 |
| QTY | 1 PC USED |
